Radiopharmaceuticals are used in nuclear medicine for the application of medical imaging and therapy.

An overview of radiopharmaceuticals in clinical use

Radiopharmaceuticals primarily consist of a radioisotope which is incorporated into a pharmaceutical with the ability to evaluate a disease state inside the human body.  The pharmaceutical is used to transport the radioisotope to a certain organ, tissues or particular cells within the body. In some instances, radioisotopes can be used in their ionic or inert form without attachment to an organic molecule.  In addition, biomolecules can be attached to radionuclides such as technetium-99m, rhenium-188, lutetium-177 and yttrium-90.  When the radiopharmaceutical (imaging agent) is administered to a patient it is continually monitored by a specific imaging device such as a gamma camera for diagnosis and therapeutic purposes. These systems include SPECT and PET imaging.

Incidentally, radiopharmaceuticals possess the intrinsic property of radionuclides (radioisotopes) which is the natural process of decay.  This provides routes to theranostic (therapy + diagnosis) applications.  In effect, this fundamental property results from the excess energy produced due to nuclear instability since radioactive decay is the product of an unstable nucleus.  In order, for the radionuclide to become more stable it must emit particles (e.g. alpha and beta) or rays such as gamma radiation from the nucleus.

Cancer theranostic treatments include ¹⁷⁷lutetium PSMA therapy: this is a treatment for advanced prostate cancer and ¹⁷⁷lutetium octreotate therapy for the treatment of neuroendocrine tumours (NETs) including head and neck cancers and gastrointestinal tumours.

Accordingly, radiopharmaceuticals are primarily used in the area of nuclear medicine for the application of medical imaging and/or therapy in the diagnosis and treatment of many disease states: for example, brachytherapy is used to treat prostate cancer.  There are numerous radiopharmaceuticals that use technetium-99m and possess many useful properties as a gamma-emitting radionuclide in diagnostic imaging.

Nuclear medicine departments are responsible for the administration of radioisotopes and radiation in the diagnosis of the disease state and potential radiotherapy treatments.  The objective of nuclear medicine is to provide information about the functioning of the human body and allow healthcare professionals to diagnosis the disease state of the patient.  For example, the heart, liver, thyroid and skeleton can be imaged to detect disease.

Nuclear Medicine uses radiopharmaceuticals to gain insight into the intricate workings of the human body’s organs and biological processes. Currently, diagnostic procedures using radiotracers are routinely used in various healthcare organisations.

The advancement of radiotherapy systems incorporating proton therapy and image-guided applications are used to treat several medical oncological conditions.  For example, using radiation to target cancer cells in any part of the human body.

Currently, over 40 million nuclear medicine procedures are performed every year with the demand for radioisotopes is increasing at an annual rate of 5%.

There are over 10,000 hospitals in the world use medical radioisotopes and approximately about 90% of all procedures are for diagnostic medical imaging.  The most popularly used radioisotope in diagnosis is technetium-99m, with over 40 million procedures per year.  This radioisotope accounts for approximately 80% of all nuclear medicine procedures.

In 2015, the global radioisotope market was worth $9.61 billion, with 80% of this figure accounting for medical radioisotopes.  It is projected that the worldwide market for radioisotopes will be in the order of $17.28 billion by 2021.  The North America market for diagnostic radioisotopes takes into account approximately 50% of the market share compared to Europe, which accounts for 20% of the market share.

Nuclear medicine departments began to appear in hospitals in the 1950s using iodine-131 to investigate and treat thyroid related diseases.  Nuclear medicine continues to expand with the advancement of technologies, which include the hybrid scanner positron emission tomography/computed tomography (PET/CT).  This was only achievable through the expansion of accelerators in radioisotope production.  For example, the main radioisotope technetium-99m is better quality from nuclear reactors in comparison to the lower quality and higher cost obtained from accelerators.

The radiopharmaceuticals which are used for diagnostic purposes are short-lived radiotracers that emit gamma rays inside the body to produce a 2-D picture: alternatively by the application of tomography to generate a 3-D image.  These radiotracers can be introduced into the body either by injection, inhalation or orally.

Consequently, radiation is emitted from various points within the body and gamma cameras are subsequently used for detection and to locate the disease state in order to construct a diagnostic image.  The image is then further processed using a computer platform and evaluated by radiologists to locate any abnormalities.

The scanning machine – single photon emission computed tomography (SPECT) is used to diagnose and monitor a broad range of medical conditions.  Another scanner used in nuclear medicine imaging is called positron emission tomography (PET) and uses radioisotopes which are produced in a cyclotron.

The majority of positron-emitting radiopharmaceuticals are injected into the bloodstream of the patient which then accumulates in the target tissue. During the decaying process, a positron is emitted which interacts with the nearby electron resulting in the simultaneous emission of two gamma rays (511 keV) in opposite directions. These gamma rays are detectable by a PET camera in order to construct the relevant images.

The most important clinical role of PET imaging is in the area of oncology and this involves the radiotracer fluorine-18 (half-life 109.8 mins).  These radiotracers have proven to be beneficial in the detection and evaluation of most cancers.  PET imaging is also used for cardiac and brain imaging.

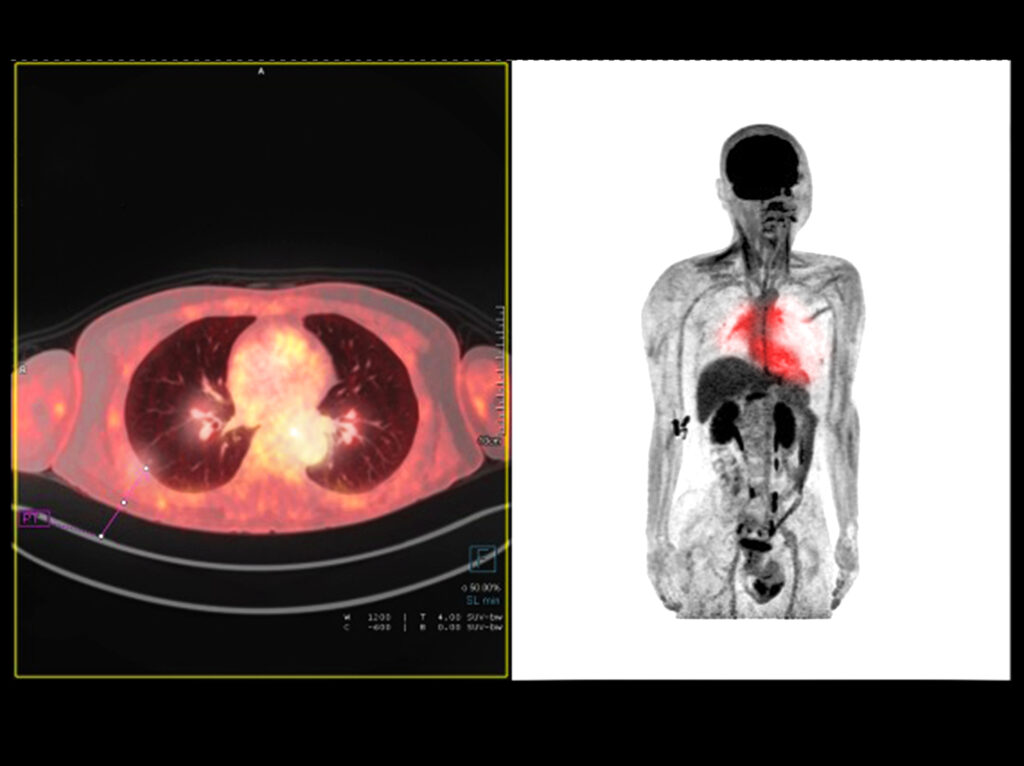

In addition, PET imaging can be combined with computed X-ray tomography (CT) scans to superimpose the two images (PET + CT) to provide information on a range of diseases from dementia to cancer.  The advantage of these hybrid machines is that they enable a 30% increase in diagnosis compared to using standard gamma camera techniques.

The principle behind nuclear medicine is to have a radiation source emitting inside the human body so that it can be detected outside the body by using gamma cameras.  This is in contrast to external imaging techniques such as the usage of planer X-ray machines.  Also, the advantage of nuclear imaging over X-ray techniques is that both the bone and soft tissue can be imaged at the same time.

Gamma imaging can be used to determine the location and concentration of the radioisotope within the body. For example, if a particular organ is not functioning correctly, this would result in the accumulation of the radiotracer.  During the uptake of the radiotracer, several images can be obtained to investigate the rate of radioisotope movement, which can be correlated to the function of the organ.

Diagnostic radiopharmaceuticals

The organs in the human body are able to absorb chemicals.  For example, the thyroid takes up iodine and the brain consumes glucose.  These observations are the basis to the development of a range of radiopharmaceuticals which include attaching radioisotopes to biomolecules.  When a radiotracer enters the body, it is incorporated into its biological pathways, metabolised, and then excreted.  These radiopharmaceuticals can be used to investigate the flow of blood in the brain, amongst other organs such as the liver, lungs, heart, kidneys and including investigations into bone growth.

However, the amount of radiopharmaceutical given to a patient can range from a small dose of 5 microcuries to 35 millicuries.  To put this into context, the radiation received from these dosages is about the same amount of radiation received from an X-ray study of that particular organ.

Radiopharmaceuticals used in the diagnosis of the disease state

The diagnostic radioisotope must be able to emit gamma rays and contain enough energy to escape from the body.  Ideally, the rate of decay of the radioisotope must be completed quite soon after the imaging.

Technetium-99m is the most extensively used radioisotope in medicine being involved in about 80% of all nuclear medicine procedures. Technetium-99m contains the following characteristics:

• The half-life of technetium-99m is 6 hours which facilitates the investigation of metabolic processes
• The half-life is short enough to minimise the radiation dose to the patient
• The decay process involves an ‘isomeric’ process by emitting both gamma rays and low energy electrons
• No high-energy beta emission is associated with technetium-99m which results in a low radiation dose to the patient
• The low-energy gamma rays emitted from inside the body are easily detectable by a gamma camera positioned outside the body
• The chemistry of technetium allows for the incorporation of this radiotracer in a range of biomolecules
• Technetium-99m is produced using the molybdenum-99 generator, which is portable

Radionuclide generators

The nuclear reactor which produces molybdenum-99 has a half-life of 66 hours and decays to technetium-99m. Drytec™ is a technetium-99m generator: each eluent of the generator should not exceed more than 0.0056 MBq of molybdenum-99 per 37 MBq of technetium-99m for a single administered dose.  Also, the RadioGenix® System is a technetium-99m generator used to produce sodium pertechnetate ^99mTc injection. The new TechneLite generator, which is the first technetium-99m generator in the United States containing molybdenum-99 (⁹⁹Mo) which is produced from at least 95 per cent low-enriched uranium. This new type of generator aims to eliminate the use of highly enriched uranium, which is sourced from ⁹⁹Mo. Technetium-99m; is used in SPECT imaging; for example, myocardial perfusion imaging to detect coronary artery disease.

In diagnostic medicine, there is a tendency towards using more cyclotron-produced isotopes such as fluorine-18 because PET and PET-CT have become more widely available. For PET imaging, the imaging agent 2-deoxy-2-[¹⁸F]fluoro-glucose with a half-life of approximately two hours is the primary radiotracer used in nuclear medicine procedures.  FDG can be incorporated into the cell without being broken down and is, therefore, a good indicator of cell metabolism.

However, the procedure needs to be completed within two hours reach of a cyclotron, which limits its utility compared with ⁹⁹Mo/^99m generators.  For PET imaging, strontium-82, which has a half-life of 25 days, can be used to generate rubidium-82, making it more accessible.

FDA approved radiopharmaceuticals

Future of radiopharmaceuticals

Technetium-99m and 2-deoxy-2-[¹⁸F]fluoro-glucose (FDG) remain the workhorse radiopharmaceuticals for SPECT and PET imaging accounting for 80 per cent of all nuclear medicine procedures.  However, several new radiopharmaceuticals are driving molecular imaging in the clinical setting, and these include the PET imaging agents flutemetamol and florbetapir which are used in the early diagnosis of neurodegenerative diseases such as Alzheimer’s.  The technetium-99m radiopharmaceutical ubiquicidin is used to detect bacterial infections on the sites of orthopaedic implants extending to ⁶⁸Ga-NOTA-ubiquicidin for PET imaging of infection.

Incidentally, there are some new cardiovascular PET imaging applications towards myocardial perfusion imaging such as ammonia-13 and flurpiridaz.  Also, the recent approval of RUBY-FILL (generator containing strontium-82) and the elution system to produce CardioGen-82: these systems lead to the formation of rubidium-82. This radionuclide is used in the clinical setting in the form of ⁸²RbCl to mimic the potassium ions (K+) for the imaging of myocardial perfusion.  However, due to its short half-life of  1.3 min rubidium-82 poses several challenges for routine applications.  However, the benefit of using rubidium-82 is that it provides a higher resolution PET scan in comparison to the SPECT tracer ^99mTc-MIBI.

A novel class of PET radiopharmaceuticals using ⁶⁸Ga-FAPI was able to identify at least 30 types of malignant tumours.  This radiotracer targets cancer-associated fibroblasts, which can contribute up to 90 per cent of a tumour’s mass.

Advancements of radiopharmaceuticals in oncology have included axumin (¹⁸F-fluciclovine) used for the detection of recurrent prostate cancer.  The FDA has given approval for the PET imaging agent ⁶⁸Ga-dotatate known as NETSPOT™ to locate somostatin receptor positive neuroendocrine tumours in both adult and paediatric patients.

Subsequently, the PET radiotracer, ¹⁸F-TZ3504 has been used to image neuroinflammation due to multiple sclerosis by quantitative assessment of S1P1 expression in the body.

The generation of technetium-99m introduces problems to the SPECT-CT market and therefore requires an alternative approach.  The non-reactor manufacture of technetium-99m in the future will allow SPECT radiopharmaceuticals to effectively compete with cardiac PET.

Theranostics is a hot topic in the radiopharmaceutical market, especially due to the latest FDA approval of lutetium-177 dotatate (lutathera) to image and treat gastroenteropancreatic neuroendocrine tumours.  This theranostic agent is a combination of a diagnostic agent and a therapeutic agent, such as ⁶⁸Ga- and ¹⁷⁷Lu-dotatate.

Another promising prostate cancer theranostic pairing are the bombesin analogues, ⁶⁸Ga and ¹⁷⁷Lu-RM2.   Also, ⁸⁶Y (β+) forms a theranostic isotopic pair with the pure β− emitter ⁹⁰Y.  Currently, the PET radiometal ⁴⁴Sc which can be obtained from a ⁴⁴Ti/⁴⁴Sc generator possesses similar decay characteristics to ⁶⁸Ga but a longer half-life of 3.97 hours.  It has been demonstrated that ⁴⁴Sc-DOTATOC is compatible with standard radiolabelling techniques and produces a comparable imaging quality to that of the ⁶⁸Ga-DOTATOC.

In addition, the calcium mimic, Xofigo (radium-223) was approved by the FDA in 2013 for the treatment of bone metastases in prostate cancer.  However, a future radiopharmaceutical [²²⁵Ac]-FPI-1434 is in development to target solid tumours, which include non-small cell lung, prostate and breast cancers.

Interestingly, pentixafor can be labelled with ^99mTc for SPECT imaging and ⁶⁸Ga for PET imaging.  This imaging agent binds to CXC chemokine type 4 receptors which are up-regulated in several cancers, for example, multiple myeloma.

In January 2019, the diagnostic radiopharmaceutical, ⁶⁴Cu-dotatate,  received fast track designation from the FDA. ⁶⁴Cu-dotatate is a PET diagnostic agent developed to detect neuroendocrine tumours.  Also, the radiotherapy drug Azedra (iobenguane iodine-131) is used to treat rare tumours of the adrenal gland called pheochromocytomas.

On the SPECT horizon, the radiotracer AdreView (iobenguane iodine-123) is the first imaging agent to establish a link between nerve function in the heart and the patient’s mortality risk.  Also, AdreView has been given FDA approval for the scintigraphic assessment of myocardial sympathetic innervation, known as cardiac nerve activity.

Currently, a new generation of hybrid scanners is entering the clinical setting which combines PET and MRI imaging.  This will allow for the development of a new class of imaging agents that incorporate the radionuclide into superparamagnetic iron oxide nanoparticles (SPION) to allow hybrids of PET/MRI and SPECT/MRI.

An alternative approach is to use paramagnetic manganese instead of the MRI contrast agents based on gadolinium.  It can be envisaged that the use of paramagnetic manganese and the PET radiometal ^52gMn can be used to produce hybrid PET/MRI images.  These scanners will enable radiopharmaceuticals to be developed to evaluate traumatic brain injury and post-traumatic stress disorder amongst other disease states.
